| PLC program control, touch screen operation, show the working status and fault at real time on the screen. | The vertical elevation support unit ensures the saw spindle running stably at high speed, improves the working accuracy and offers a better security when changing the saw blades' size. | The saw blade cooling and lubricating device can cool and lubricate the saw blade and push rod at any time according to the machine condition, so as to improve the accuracy retention and service life of the key parts. |
|
|
|
| Provided with laser markers to predict the cutting position of wood block, improves the utilization rate of wood blocks. | Spike link chain conveyor, for an exact wood positioning and accurate cutting. | Servo-controlled saw blades move rapidly on the saw spindle to achieve the optimum cutting. |
|
| |
| Pneumatic top rollers for a uniform pressure. | Saw spindle & pressure mechanism: motor-driven elevation. |
Standard
|
|
|
| Multi anti-kickback fingers to prevent wood chips from rebounding. | Saw spindle limit switch. | Pressure mechanism limit switches & locking device, avoid machine damage due to the false operation. |
Optional
|
|
|
| Laser marker predicts the cutting route and improves the utilization rate of the wood.(except AM4500). | Worktable built-in roller. | According to the actual requirements, choose the saw blade with different diameters that will influence the saw spindle speed. |
|
|
|
| SM4305 optional nail chain plate, precise positioning of wood, precise sawing. | Automatic material handling device. | Feed in and out auxiliary bracket. |
| ||
| Saw blade cooling and lubrication device can cool and lubricate the saw blade at any time according to the state of the machine, improve the sawing precision and extend the service life of the saw blade. |
| Item | Machine model |

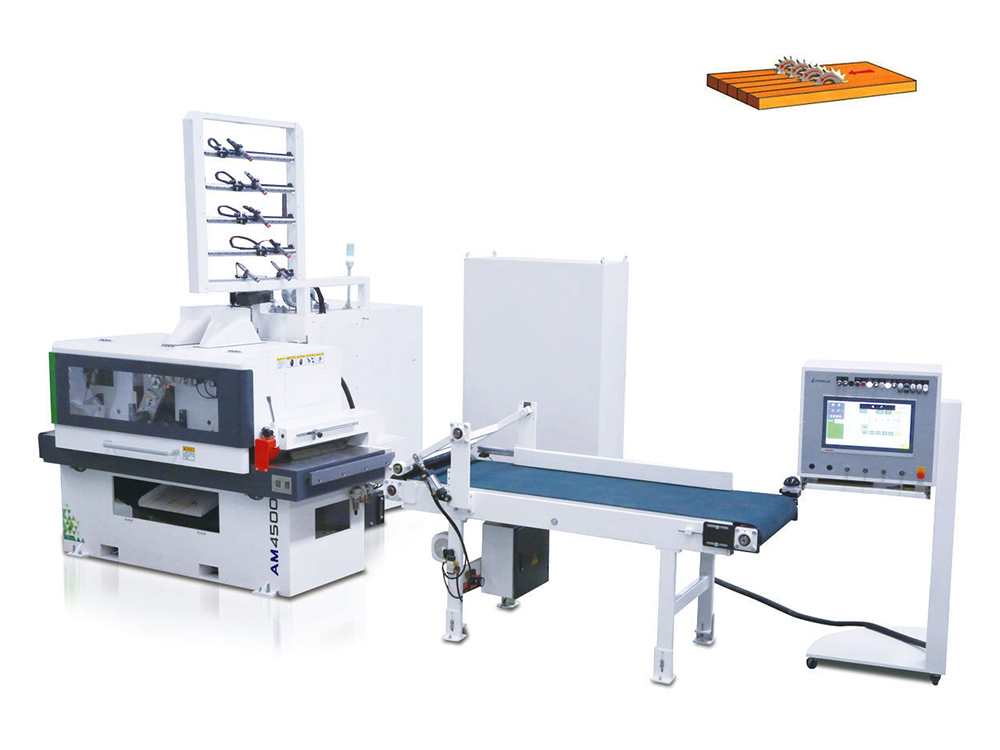

| AM4500 | |
| Technical data | |
Working thickness | 10-70mm |
Working thickness when with pressure board | 10-70mm |
Working width | 500mm |
Max. ingoing width | 850mm |
Min.working length | 350mm |
Saw blade dia | Ф205-305mm |
Saw blade inner bore dia | Ф80mm |
Saw spindle rotation speed | 4600rpm |
Saw blade cutting speed | 73m/s |
Total motor power | 45kW |
Saw spindle motor power | 37kW |
Feeding motor power | 4kW |
Pressure mechanism elevation motor | 0.75kW |
Saw spindle elevation motor | 0.75kW |
Feeding speed | 6-40m/min |
Qty of saw blades | 4(1 fixed) pcs 4(3 fixed) optional |
Saw spindle dia | Ф65mm |
Qty of pressure rollers | 6(units) |
Machine size | 2900×2500×2950mm |
Packing size | 3250×2680×2200mm |
Machine weight | (approx)5000kg |
Dust exit | Ф250mm×2 |
Required suction speed | (approx)30-40m/s |
Required suction volume | (approx)8000m³/h |
Spike link chain conveyor | ● |
Auxiliary pressure roller at out-feed end | ● |
Extension table at both ends | ● |
Laser marker | ● |
Automatic material handling device | ○ |
Automatic sprinkler system | ● |
Automatic water cooling device for moisturized wood processing | / |
Magnetic grating digital readout | / |
PLC + touch screen | ● |
Pneumatic feeding rollers individually adjusted | ● |
Chain drive, no slipping | ● |
Remarks：●Standard ○Optional
