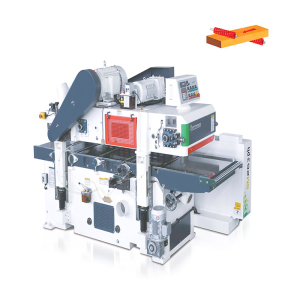

Double Surface Planer

Product Model：

SM243ph/SM263ph

Professional solution for the double-sided and fixed thickness processing with wood thickness not more than 170mm.

Inquiry

E-mail：jangja@jangja.com

Detailed Description
Technical Specifications

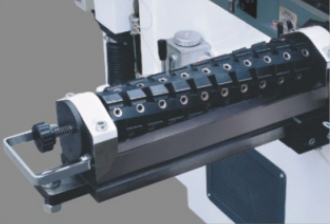

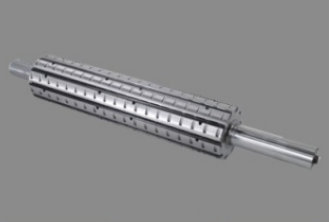

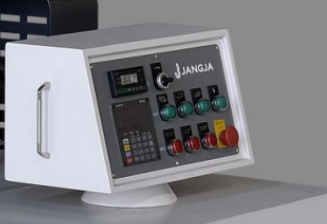

The feeding pressure can be adjusted freely according to the working requirements.	High-precision photoelectric pulse digital display; the accuracy can be accurate to 0.01 mm, and the thickness of the processed wood can be automatically located directly.	Heavy duty spiral cutterheads, suitable for hard and moisture timber processing, easy to change the tips.

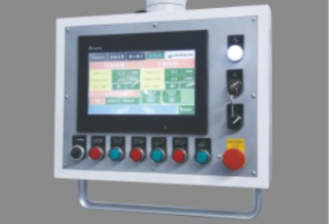

Optional flat knife.	Optional PLC program control, touch screen operation, timely display of the working state and fault of the machine.

Standard

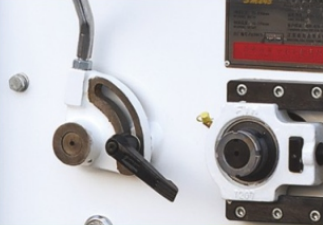

Top & down action feeding rollers for a powerful and quick material feeding	Designed with up/down buttons and scale at both ends,the upper mechanism can be adjusted at any time.	Pressure mechanism power-driven elevation

Automatic thickness setting device & pressure mechanism down limit switch	Inverter controlling feed system, suitable for various material processing.	Automatic lubricator provides a forced lubrication to the feeding mechanism, features oil-free protection function.

Optional


Short workpiece machining device, min working length 100mm in continuous material feeding.	Extension table at out-feed end.	Automatic extension table at in-feed end.

Item		Machine model
		SM243ph	SM263ph	SM263	SM263h	SM263ph
		Technical data
Working width		25-430mm	25-630mm	25-635mm	25-635mm	25-630mm
Working thickness		10-170mm	10-170mm	10-200mm	10-200mm	10-400mm
Min working length		265mm	265mm	315mm	315mm	315mm
Max. chip removal per feeding	Upper cutter spindle	8mm<200mm wide	8mm<300mm wide	8mm<300mm wide	10mm<300mm wide	10mm
Max. chip removal per feeding	Down cutter spindle	5mm<200mm wide	5mm<300mm wide	5mm<300mm wide	8mm<300mm wide	8mm
Tool cutting circle dia		Ф101mm	Ф101mm	Ф126mm	Ф126mm	Ф126mm
Cutter spindle rotation speed		4500rpm	4500rpm	4600rpm	5500rpm	5500rpm
Tool cutting speed		24.3m/s	24.3m/s	30.3m/s	36.28m/s	39.1m/s
Feeding speed		4-30m/min	4-30m/min	6-30m/min	10-40m/min	6-40m/min
Total motor power		15.57kW	21.87kW	31.1kW	43.25kW	43.25kW
Upper cutter spindle motor power		7.5kW （11 optional）	11kW （15 optional）	15kW （18.5 optional）	22kW （30 optional）	22kW （30 optional）
Down cutter spindle motor power		5.5kW （7.5 optional）	7.5kW （11 optional）	11kW （15 optional）	15kW （18.5 optional）	15kW （18.5 optional）
Feeding motor		2.2kW	3kW	4kW	5.5kW	5.5kW
Elevation motor		0.37kW	0.37kW	1.1kW	1.1kW	0.75kW
Machine size		2480×1100 ×1920mm	2480×1300 ×1950mm	2800×1570 ×1820mm	2903×1330 ×1838mm	2903×1330 ×2308mm
Packing size		2500×1170mm	2500×1370mm	2900×1620×1900mm	3200×1600mm	3200×1600mm
Machine weight		2250kg	2600kg	3300kg	3600kg	3600kg
Dust exit	Down	Ф125mm×1	Ф125mm×2	Ф150mm×2	Ф150mm×2	Ф150mm×2
Dust exit	Upper	Ф155mm×1	Ф155mm×2	Ф150mm×2	Ф180mm×2	Ф180mm×2
Required suction speed		(approx)30-40m/s	(approx)30-40m/s	(approx)30-40m/s	(approx)30-40m/s	(approx)30-40m/s
Required suction volume		6000m³/h	8000m³/h	10000m³/h	10000m³/h	10000m³/h
Spiral cutterheads with four-sided TCT tips		○	○	○	○	○
Heavy duty spiral cutterheads		●	●	●	●	●
Short workpiece machining device (100mm in continuous feeding)		○	○	○	○	○
Inverter controlling feed system		●	●	●	●	●
Pressure roller pneumatic control		○	○	○	●	●
Photoelectric pulse digital display of planing thickness		●	●	●	●	●
Feeding pressure adjustable		●	●	●	●	●
Active feeding table		○	○	○	○	○
Engaged out-feeding table		○	○	○	○	○
