Automatic Slitting & Edging Machine

Professional solution for the timber longitudinal cutting or straightening process with wood thickness not more than 70mm.

Standard

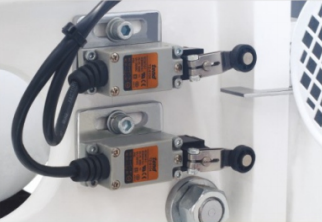

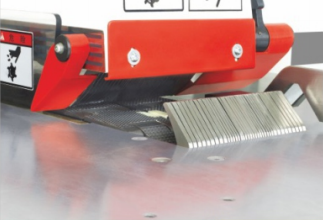

Upper & bottom anti-kickback fingers design to prevent wood chips from rebounding.	Pressure mechanism up/down limit switches to ensure safe operation.	Automatic oil pump provides a forced lubrication to the link chain conveyor and the guideway.

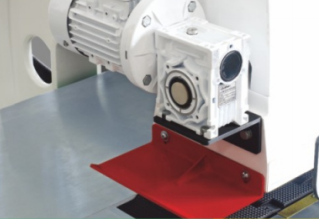

Pressure mechanism motor-driven elevation for a convenient and fast adjustment.

Optional


Model VM, SM & EM: laser marker to indicate the cutting routine in advance.	Extension table.	Feeding guide automatic setting & working width digital readout.

Auxiliary support roller.	Model VM & SM: spike link chain conveyor for exact parallelism.	Saw blade cover can't be opened until saw spindle comes to a complete stop for operator safety.

Item	Machine model

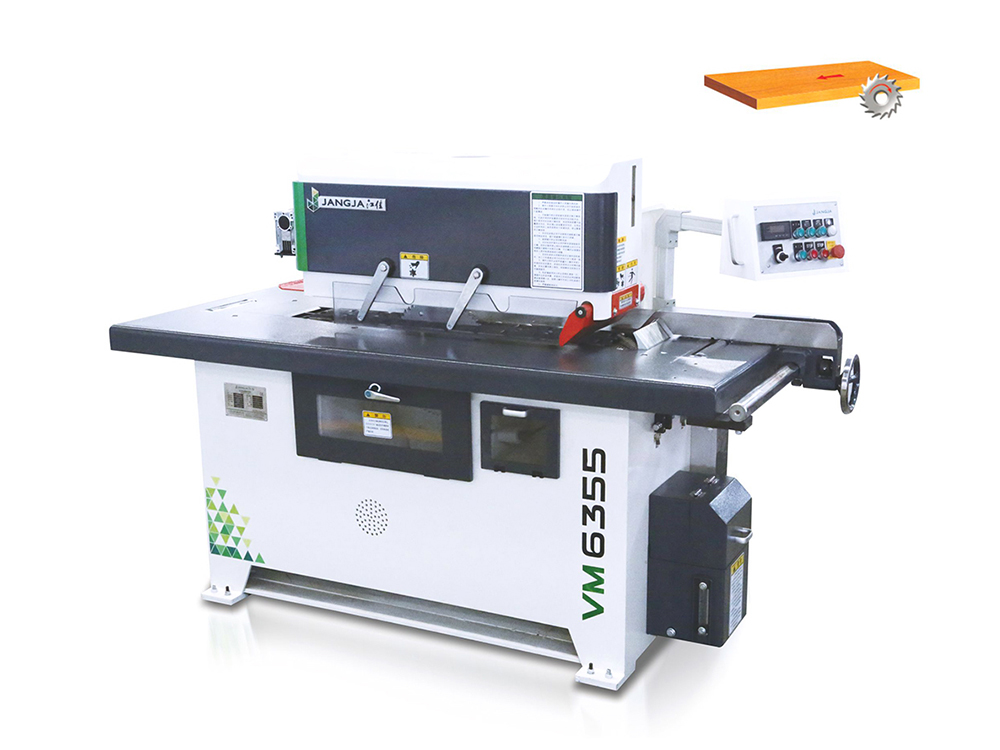

	VM6355
	Technical data
Working thickness	10-70mm
Min. working length	120mm (250mm when edge straightening)
Working width	1-∞
Throat capacity	460mm
Total motor power	9.18kW
Saw spindle motor power	7.5kW
Feeding motor power	1.5kW
Elevation motor	0.18kW
Saw spindle rotation speed	3400rpm
Feeding speed	10-30m/min
Saw blade dia	305-355mm
Working table size	1826×972mm
Qty of pressure rollers	8(units)
Machine size	2056×1126×1350mm
Packing size	2126×1301mm
Machine weight	1400kg
Dust exit	(upper)Φ100mm×1 (down)Φ125mm×1
Required suction speed	(approx)30-40m/s
Required suction volume	(approx)1500m³/h
Saw spindle adjustable	○
Auxiliary support rollers in table	○
Laser marker	○
Side safety baffle	○
Working width digital readout	○
Feeding guide automatic setting	○
Extension table	○
T-guideway adjustment indicating	●
Saw spindle inverter control system	○
Saw blade stop safety device	○
