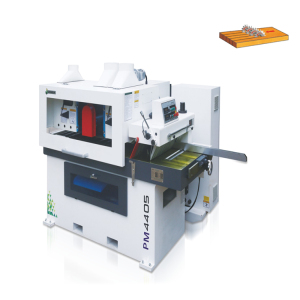

Heavy Duty Multi Rip Saw

Product Model：

PM4405

Professional solution for the multi-slicing and fixed-width longitudinal cutting, suitable for the wood block with thickness not more than 135mm, width not more than 400mm, and length not less than 450mm.

Inquiry

E-mail：jangja@jangja.com

Detailed Description
Technical Specifications


Spike link chain conveyor for an exact cutting parallelism.	Multi anti-kickback fingers unit to prevent wood rebound efficiently.	The feeding mechanism is driven by the chain, efficiently prevents slipping during feeding.

Standard


Multi anti-kickback fingers to prevent wood chips from rebounding.	Saw spindle limit switch.	Pressure mechanism limit switches & locking device, avoid machine damage due to the false operation.

Optional


Laser marker predicts the cutting route and improves the utilization rate of the wood.(except AM4500).	Worktable built-in roller.	According to the actual requirements, choose the saw blade with different diameters that will influence the saw spindle speed.

SM4305 optional nail chain plate, precise positioning of wood, precise sawing.	Automatic material handling device.	Feed in and out auxiliary bracket.

Saw blade cooling and lubrication device can cool and lubricate the saw blade at any time according to the state of the machine, improve the sawing precision and extend the service life of the saw blade.

Item	Machine model
	PM4405
	Technical data
Working thickness	10-135mm
Working thickness when with pressure board	10-110mm
Working width	4-400mm
Max. ingoing width	800mm
Min.working length	450mm
Saw blade dia	Ф305-405mm
Saw blade inner bore dia	Ф65（80）mm
Saw spindle rotation speed	3200rpm
Saw blade cutting speed	50-67m/s
Total motor power	48.37kW
Saw spindle motor power	45kW （55kW range）
Feeding motor power	3kW
Pressure mechanism elevation motor	0.37kW
Saw spindle elevation motor	/
Feeding speed	6-40m/min
Qty of saw blades	/
Saw spindle dia	Ф65mm
Qty of pressure rollers	6(units)
Machine size	(approx)2420×1750×1870mm
Packing size	2365×2000mm
Machine weight	(approx)4500kg
Dust exit	Ф200mm×2
Required suction speed	(approx)30-40m/s
Required suction volume	(approx)6500m³/h
Spike link chain conveyor	●
Auxiliary pressure roller at out-feed end	○
Extension table at both ends	○
Laser marker	○
Automatic material handling device	○
Automatic sprinkler system	○
Automatic water cooling device for moisturized wood processing	○
Magnetic grating digital readout	/
PLC + touch screen	/
Pneumatic feeding rollers individually adjusted	/
Chain drive, no slipping	/
