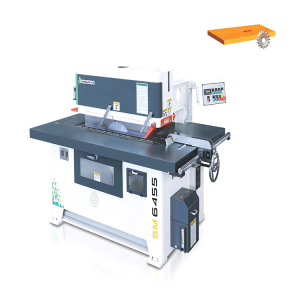

Precision Automatic Slitting & Edging Machine

Professional solution for the timber longitudinal cutting or straightening process with wood thickness not more than 70mm (SM6355) or 125mm(SM6455).


Saw spindle can be adjusted freely according to the wood thickness.

Standard


Upper & bottom anti-kickback fingers design to prevent wood chips from rebounding.	Pressure mechanism up/down limit switches to ensure safe operation.	Automatic oil pump provides a forced lubrication to the link chain conveyor and the guideway.

Pressure mechanism motor-driven elevation for a convenient and fast adjustment.

Optional


Model VM, SM & EM: laser marker to indicate the cutting routine in advance.	Extension table.	Feeding guide automatic setting & working width digital readout.

Auxiliary support roller.	Model VM & SM: spike link chain conveyor for exact parallelism.	Saw blade cover can't be opened until saw spindle comes to a complete stop for operator safety.

Item	Machine model
	SM6355	SM6455
	Technical data
Working thickness	10-70mm	10-125mm
Min. working length	120mm (250mm when edge straightening)	120mm (250mm when edge straightening)
Working width	1-∞	1-∞
Throat capacity	460mm	600mm
Total motor power	9.18kW	13.38kW
Saw spindle motor power	7.5kW	11kW
Feeding motor power	1.5kW	2.2kW
Elevation motor	0.18kW	0.18kW
Saw spindle rotation speed	2930rpm	2930rpm
Feeding speed	10-30m/min	10-30m/min
Saw blade dia	305-355mm	305-455mm
Working table size	1826×972mm	2054×1160mm
Qty of pressure rollers	8(units)	10(units)
Machine size	2056×1126×1350mm	2354×1630×1550mm
Packing size	2126×1301mm	2354×1746mm
Machine weight	1500kg	1820kg
Dust exit	(upper)Φ100mm×1 (down)Φ125mm×1	(upper)Φ125mm×1 (down)Φ150mm×1
Required suction speed	(approx)30m/s	(approx)40m/s
Required suction volume	(approx)1500m³/h	1800m³/h
Saw spindle adjustable	●	●
Auxiliary support rollers in table	○	○
Laser marker	○	○
Side safety baffle	○	○
Working width digital readout	○	○
Feeding guide automatic setting	○	○
Extension table	○	○
T-guideway adjustment indicating	●	●
Saw spindle inverter control system	○	○
Saw blade stop safety device	○	○
