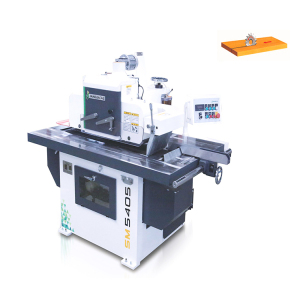

Automatic Rip Saw

Professional solution for the timber longitudinal cutting with thickness not more than 85mm (SM5305) or 125mm (SM5405).


Inverter controlling feed system.

Standard

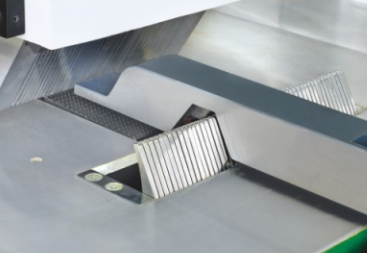

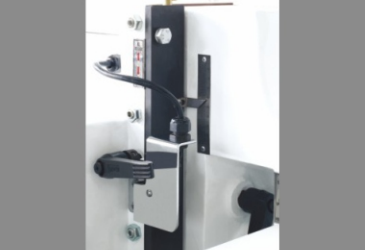

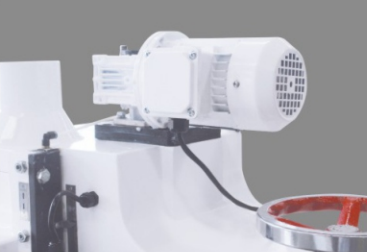

Multi anti-kickback fingers to prevent wood from rebounding.	Pressure mechanism & saw spindle locking device.	Upper pressure mechanism motor-driven elevation.

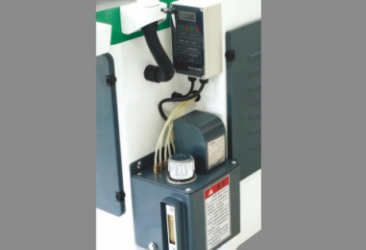

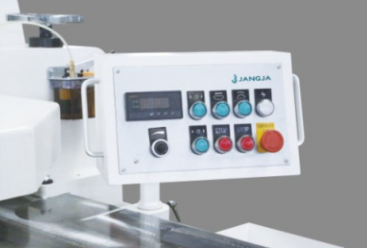

Micro-computer controlling oil pump provides a forced lubrication to the major points, extends the machine service life.

Optional

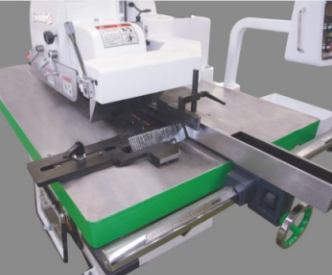

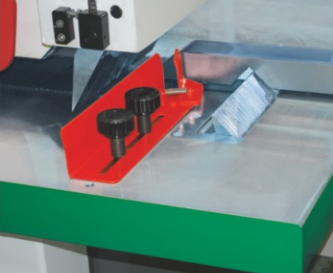

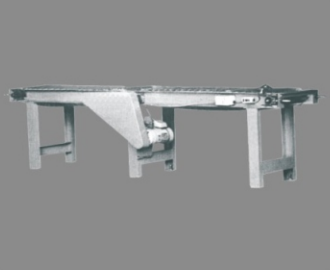

Side safety baffle.	Feeding guide automatic setting	Automatic material returning device.

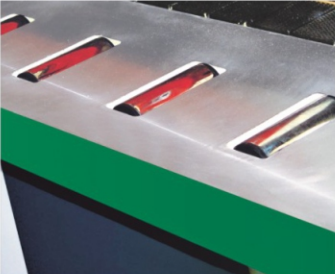

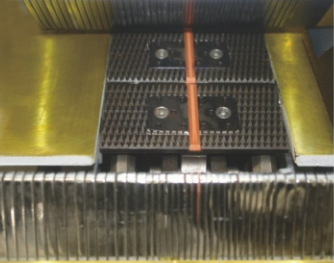

Short workpiece machining unit: Min 200mm in continuous material feeding	Auxiliary support rollers in table.	Spike feed caterpillar specially for hardwood processing.

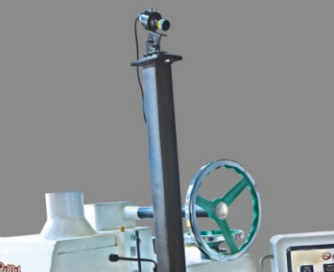

Laser marker.

Item	Machine model
	SM5305	SM5405
	Technical data
Working thickness	10-85mm	10-125mm
Working length	230-∞	260-∞
Working width	1-∞	1-∞
Throat capacity	460mm	610mm
Total motor power	9.18kW	13.38kW
Saw spindle motor power	7.5kW	11kW
Feeding motor power	1.5kW	2.2kW
Elevation motor	0.18kW	0.18kW
Saw spindle rotation speed	4000rpm	3000rpm
Feeding speed	6-40m/min	6-40m/min
Saw blade dia	250-305mm	305-405mm
Qty of pressure rollers	5units	6units
Machine size	1800×1100×1420mm	2100×1400×1500mm
Packing size	1900×1160mm	2260×1420mm
Machine weight	950kg	1500kg
Dust exit	Φ100mm×1	Φ125mm×1
Required suction speed	(approx) 30-40m/s	(approx) 30-40m/s
Required suction volume	(approx) 1500-1800m³/h	(approx) 1650-1950m³/h
Inverter controlling feed system	●	●
Spike link chain conveyor	○	○
Laser marker	○	○
Auxiliary support rollers in table	○	○
Feeding guide automatic setting	○	○

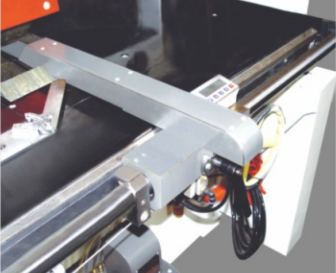

Working width magnetic grating digital readout	○	○
Automatic material returning device	○	○
Short workpiece machining device	○	○
Pressure mechanism motor-driven elevation	●	●
Side safety baffle	○	○
Extension table	○	○

Remarks：●Standard ○Optional
