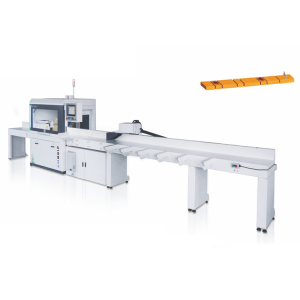

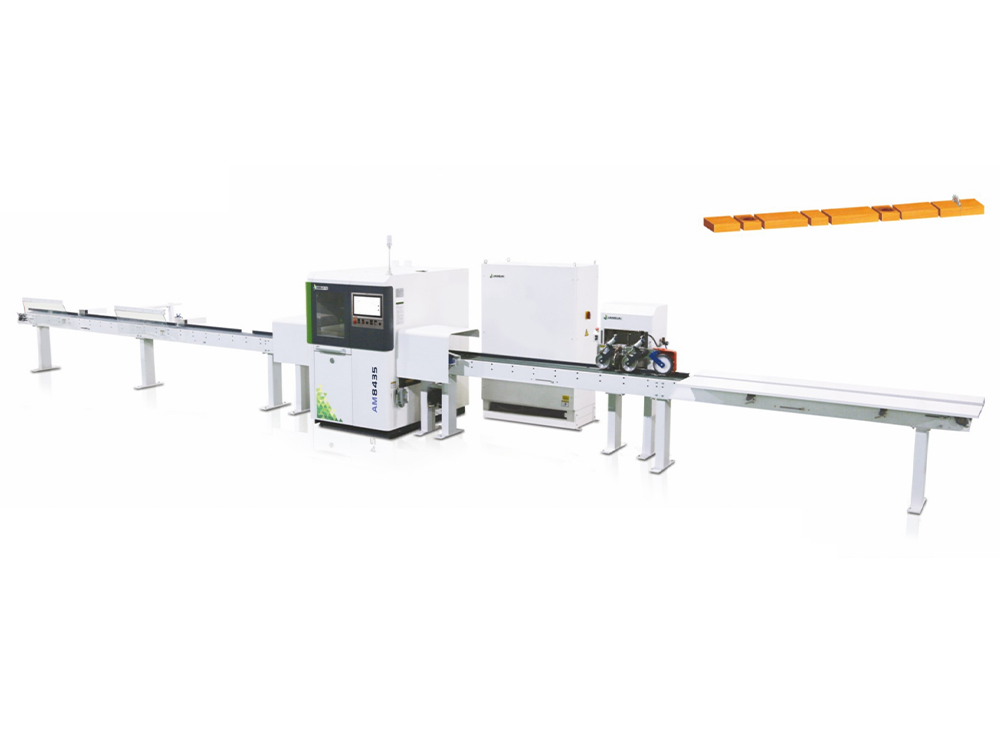

Optimizing Cross Cut Push Saw

Product Model：

AM8612/AM8612T(T - Tilting Table)

Professional solution for the optimizing cross cutting & precision fixed-length cutting, improves wood utilization and production efficiency.

Inquiry

E-mail：jangja@jangja.com

Detailed Description
Technical Specifications

Standard


High performance sawing system with servo control, up and down motion frequency is up to 3-6 times per second.	Out-feed table.	Wood alignment device at the feed inlet before the sawn station.

Saw blade locking device, loading / unloading saw blade is convenient and fast.	Powerful feeding system, speed is up to 120m/min.	Human machine interface, multiple-function mode selection, easy to operate, convenient and fast.

Timber guide-in device helps wood to be fed into sawn station smoothly.	Both the upper pressure and dual lateral pressure devices are equipped with imported guide rails and air cylinders to control, stable wood positioning and precise sawing.	Heavy-duty precision sawing mechanism, achieve wood to be cut accurately and fast.

Automatic photoelectric scanning and measuring system to quickly obtain wood length and defects.

Item		Machine model
		AM8612	AM8612T
		Technical data
Standard saw blade dia		Φ630mm（Φ500mm）	Φ500mm（Φ630mm）
Max cutting section size		420×40mm 280×180mm	420×40mm 280×180mm
Min cutting section size		20×10mm	20×10mm
Working width		20-420mm	20-420mm
Working thickness		10-180mm	10-180mm
Max ingoing length		3100/4500/6300mm	3100/4500/6300mm
Max feeding speed		120m/min	120m/min
Saw spindle rotation speed		2900rpm（3200rpm）	3200rpm（2900rpm）
Saw spindle driving motor		11kW (7.5kW optional)	7.5kW（11kW optional）
Feeding motor		5kW	5kW
Servo sawing lift motor		5.5kW（8kW optional）	5.5kW（8kW optional）
Saw spindle elevationfrequency		3-6 Hz	3-6 Hz
Positioning accuracyof pusher		±0.5mm	±0.1mm
Working table type		Platform Surface	Inclined Table Surface
Dust exit dia		Φ125mm×2	Φ125mm×2
Compressed air pressure		6bar	6bar
Saw blade clamp plate dia		Φ158mm	Φ158mm
Machine working height		900mm	900mm
Machine dimensions		7820/9220/11020×1600×1880mm	7820/9220/11020×1700×1700mm
Machine weight		2800kg	2800kg
Saw stroke being controlled by servo		-	●
Saw stroke being controlled by cylinder		●	-
Pusher	Movable	●	●
	Claw type	○	○
Out-feed conveyor		●	●
Optimization function		●	●
Thickness measurement		○	○
Out-feed conveyor belt		○	○
Ejector of out-feed conveyor		○	○
Network remote control system		○	○
EXCEL imp/exp function(at least Office XP)		○	○
Earthnet interface 10/100M		○	○
Working list data printing		○	○
Code spraying function		○	○
Light curtain safety device		○	○
Automatic loading system		○	○
Automatic stacking unit		○	○
Safety barrier		○	○
Waste outlet		○	○
