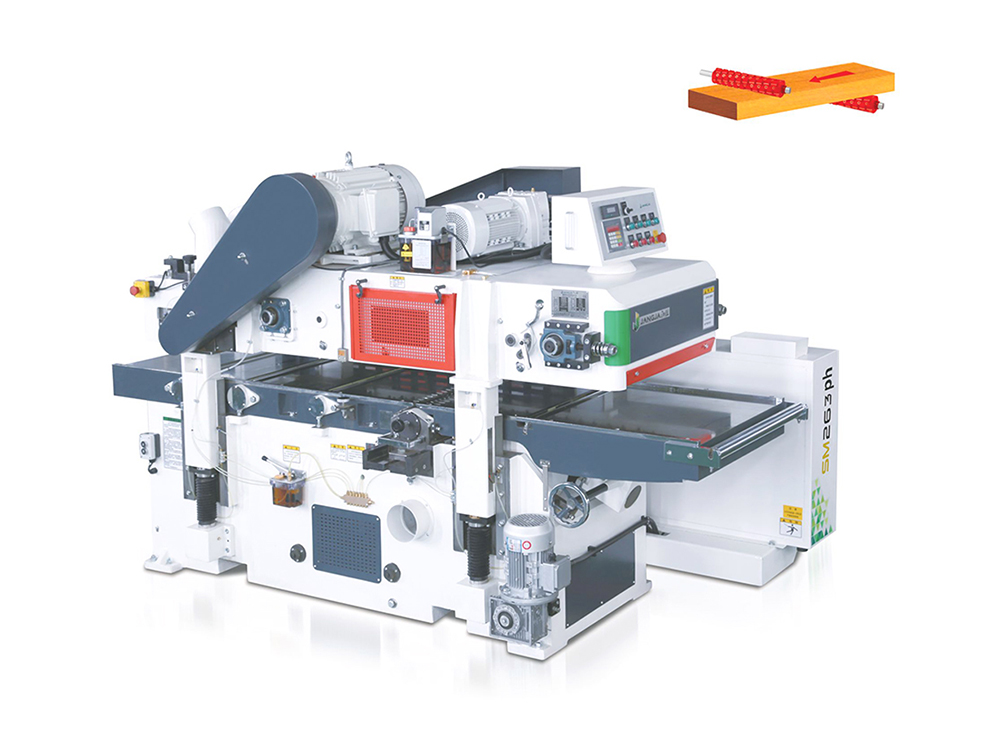

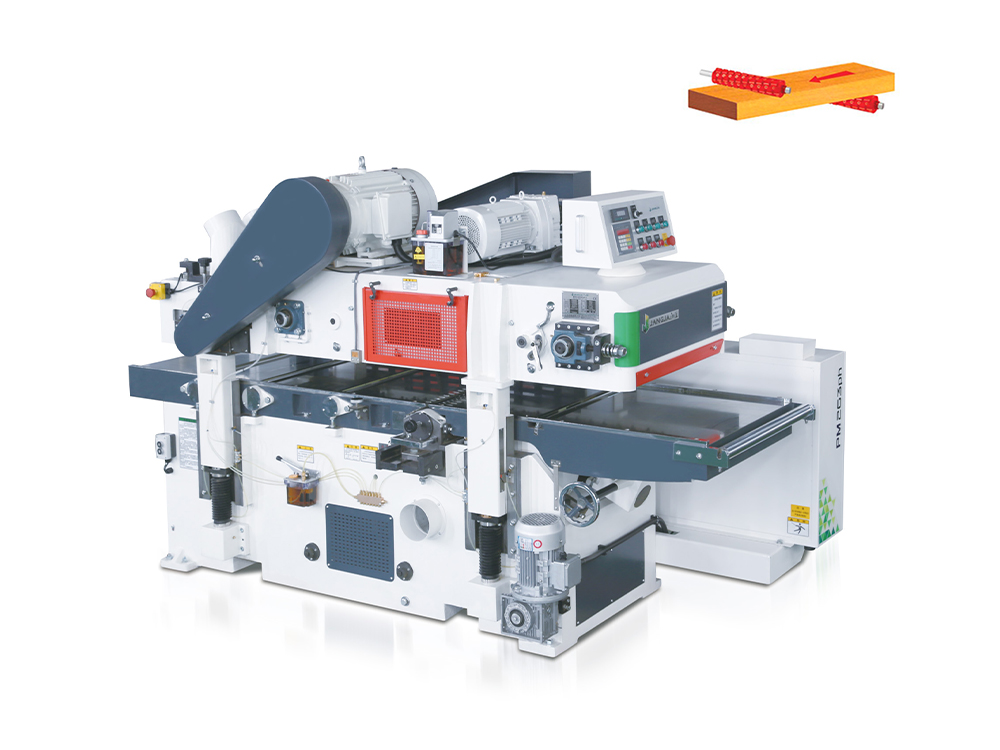

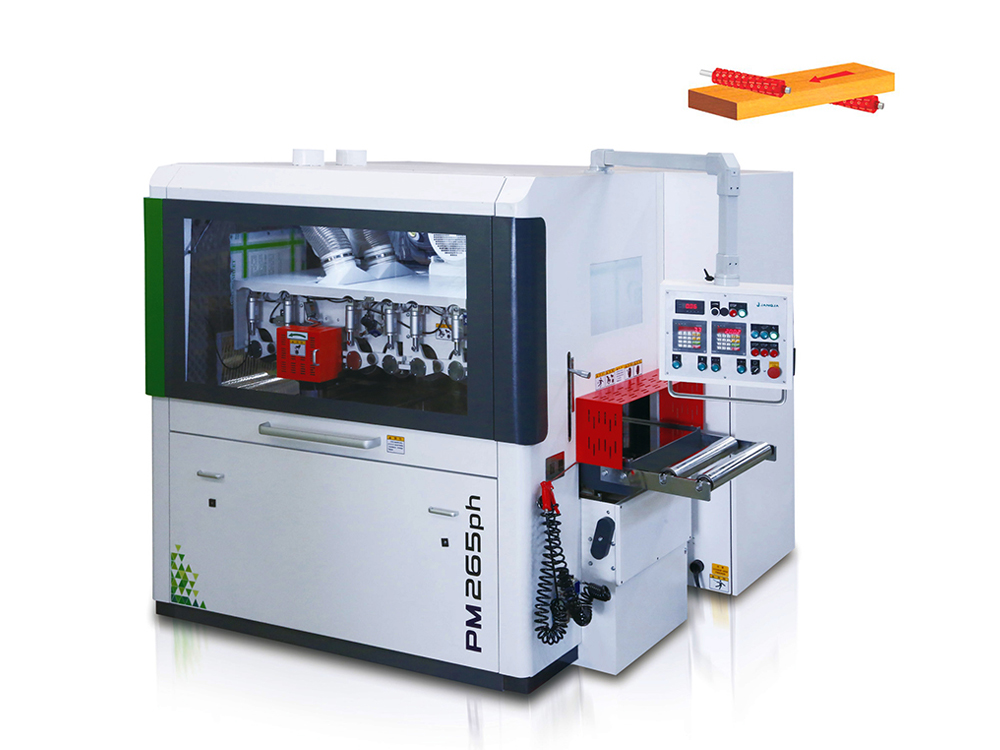

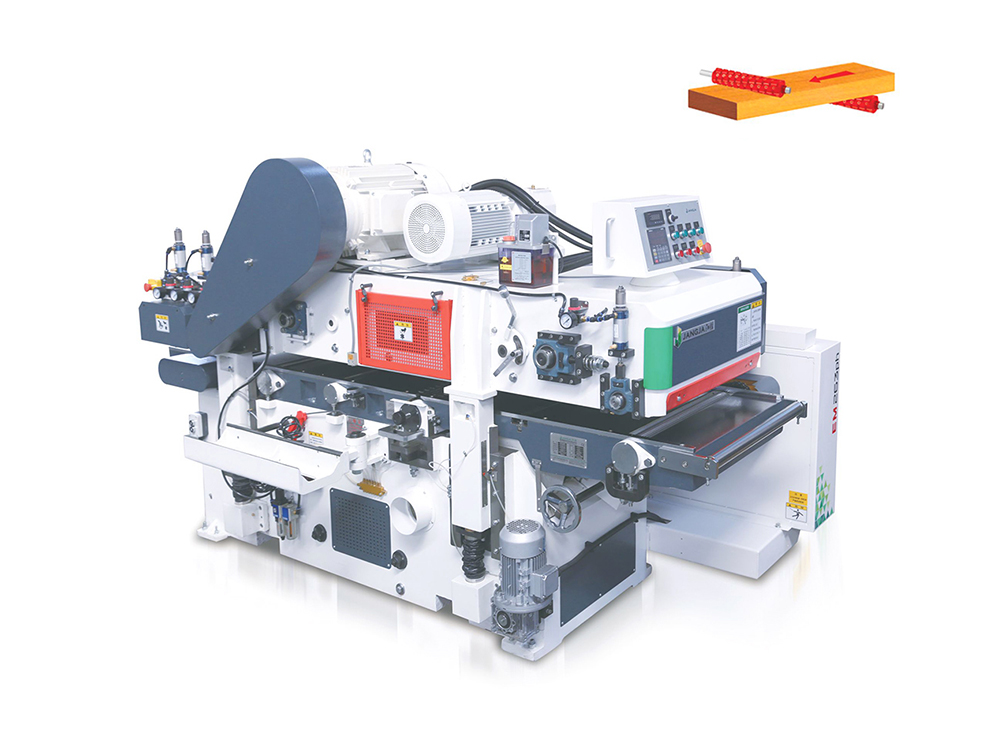

Heavy-Duty Roller Type Double Surface Planer

Product Model：

PM265ph/EM265ph

Heavy-Duty Roller Type Double Surface Planer (EM265ph: Heavy High-Speed Roller Automatic Double-Sided Planer) Professional solution for the double-sided planing and fixed-thickness cutting with wood thickness not more than 200mm. High speed and precise, numeric controlling production.

Inquiry

E-mail：jangja@jangja.com

Detailed Description
Technical Specifications


The reducer with power torque drives the gear box, and combined with the universal joint shafts, which ensures a strong and powerful material feeding.	The heavy-duty spiral cutterheads pull-out design, make it convenient and fast to change cutting tips.	Heavy duty spiral cutterheads, suitable for hard and moisture timber processing, easy to change the tips.

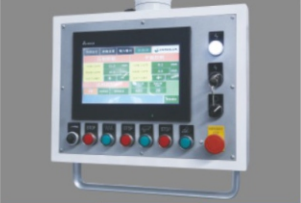

The one top and one bottom row of anti-kickback fingers, prevent the material from rebounding efficiently.	Optional PLC program control, touch screen operation, timely display of the working state and fault of the machine.	The lifting mechanism adopts cylinder locking design, improves the working accuracy.

The lifting mechanism designed with four robust sliding columns, stable and strong, suitable for heavy duty cutting operation.	Inverter controlling feed speed & automatic working thickness setter.	The working table is specially treated, characterized by ultra-abrasion-resistant and a longer service life.

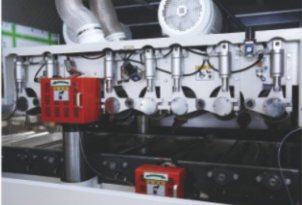

The active feeding rollers are controlled by cylinders for a uniform pressure.

Standard


Top & down action feeding rollers for a powerful and quick material feeding	Designed with up/down buttons and scale at both ends,the upper mechanism can be adjusted at any time.	Pressure mechanism power-driven elevation

Automatic thickness setting device & pressure mechanism down limit switch	Inverter controlling feed system, suitable for various material processing.	Automatic lubricator provides a forced lubrication to the feeding mechanism, features oil-free protection function.

Optional

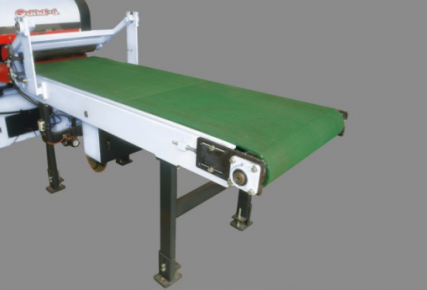

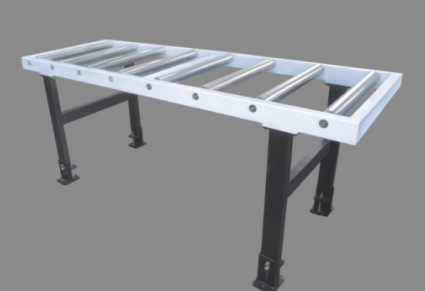

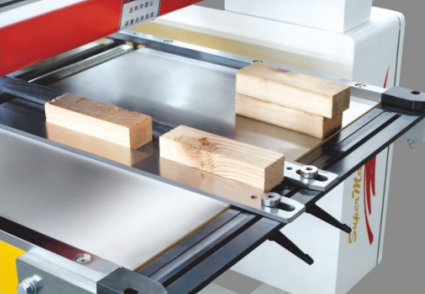

Short workpiece machining device, min working length 100mm in continuous material feeding.	Extension table at out-feed end.	Automatic extension table at in-feed end.

Item	Machine mode
	PM265ph	EM265ph
	Technical data
Working width	655mm	655mm
Working thickness	10-200mm	10-200mm
Min working length	385mm	385mm
Too cutting circle dia	126mm	126mm
Max chip removal per feeding	20mm（Up 12/Down 8）	20mm（Up 12/Down 8）
Cutter spindle rotation speed	5500rpm	5500rpm
Total motor power	44.1kW	55.6kW
Upper cutter spindle motor power	22kW	30kW
Down cutter spindle motor power	15kW	18.5kW
Feeding motor power	5.5kW	5.5kW
Movable table Lift Motor Power	0.1kW	0.1kW
Housing lifting motor power	1.5kW	1.5kW
Feeding speed	6-40m/min	6-40m/min
Machine size	2250×2100×2100mm	2250×2100×2100mm
Machine weight	(approx)4800kg	(approx)4800kg
Dust exit	Φ150mm×4/Φ125mm×1	Φ150mm×4/Φ125mm×1
Required suction speed	(approx)30-40m/s	(approx)30-40m/s
Required suction volume	(approx)8000m³/h	(approx)8000m³/h
Four column elevation mechanism	●	●
Upper & down spiral cutterheads	●	●
Sectional feeding rollers	●	●
Fast knife replacement structure	●	●
Upper & down anti-kickback fingers	●	●
Pressure mechanism pneumatic locking	●	●
PLC combined with digital controller for working thickness adjustment	●	○
PLC & human machine interface for easy operation	○	○
Positive support rollers	●	●
Auxiliary feeding rollers at both ends	●	●
Auto chip removal setting of down spindle	●	●
Auto chip removal setting of upper spindle	●	●
Feeding mechanism frequency inverter controlled	●	●
Pressure rollers pneumatic adjustment	●	●
Table surface wear resistance treated	●	●
Extension table at both ends	○	○
Motor power increase/ decrease	○	○
Common electrical system, button operation	○	○
