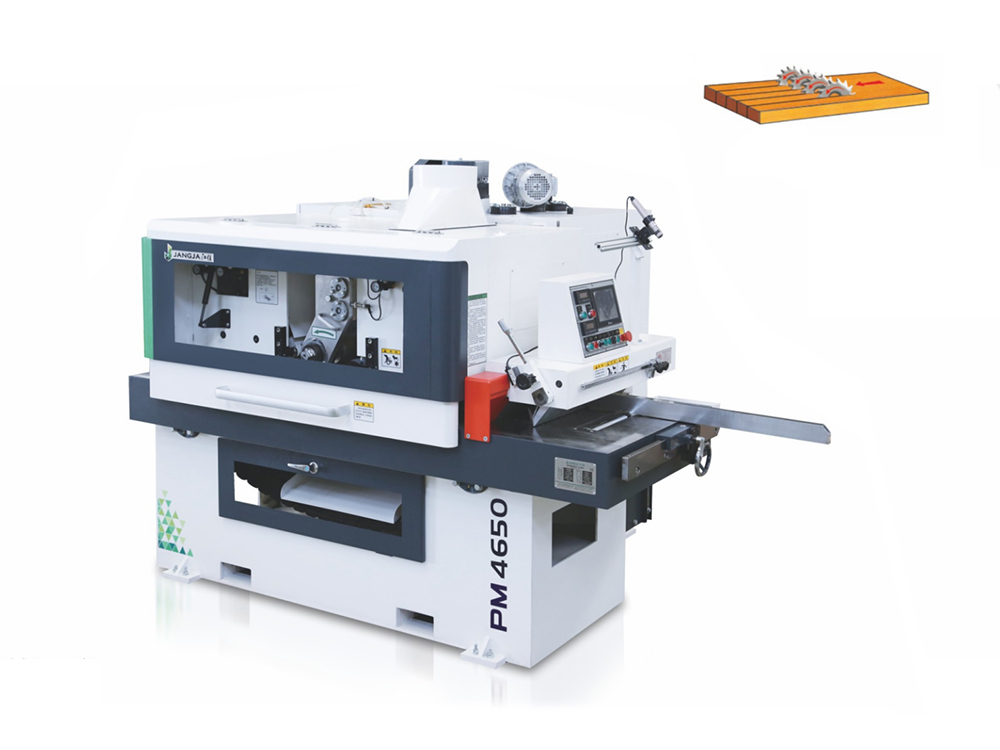

Heavy-Duty Multi Rip Saw with Thin Kerf

Product Model：

PM4650

Professional solution for the multi-slicing, fixed-width and thin-kerf cutting, suitable for the wide wood block with thickness not more than 85mm, width not more than 650mm, and length not less than 900mm.

Inquiry

E-mail：jangja@jangja.com

Detailed Description
Technical Specifications


Adopt PLC control and touch screen operation, the operation conditions and failure will be shown at real time.	The vertical elevation support unit ensures the saw spindle running stably at high speed, improves the working accuracy and offers a better security when changing the saw blades' size.	Spike link chain conveyor for an exact cutting parallelism.

Provided with laser marker, indicates the cutting route in advance, improves the material utilization.	The feeding rollers pneumatic control, ensures an even pressure on the board and smooth material feeding.	Saw spindle air-cooling technology, guarantees the saw spindle & saw blades running stably at high speed, improves the working accuracy, extends the saw blades' service life.

Standard


Multi anti-kickback fingers to prevent wood chips from rebounding.	Saw spindle limit switch.	Pressure mechanism limit switches & locking device, avoid machine damage due to the false operation.

Optional


Laser marker predicts the cutting route and improves the utilization rate of the wood.(except AM4500).	Worktable built-in roller.	According to the actual requirements, choose the saw blade with different diameters that will influence the saw spindle speed.

SM4305 optional nail chain plate, precise positioning of wood, precise sawing.	Automatic material handling device.	Feed in and out auxiliary bracket.

Saw blade cooling and lubrication device can cool and lubricate the saw blade at any time according to the state of the machine, improve the sawing precision and extend the service life of the saw blade.

Item	Machine model
	PM4650
	Technical data
Working thickness	10-85mm
Working thickness when with pressure board	10-70mm
Working width	650mm
Max. ingoing width	900mm
Min.working length	900mm
Saw blade dia	Ф250-325mm
Saw blade inner bore dia	Ф80mm
Saw spindle rotation speed	4200rpm
Saw blade cutting speed	54-71m/s
Total motor power	64.7kW
Saw spindle motor power	55kW
Feeding motor power	7.5kW
Pressure mechanism elevation motor	1.1kW
Saw spindle elevation motor	1.1kW
Feeding speed	6-40m/min
Qty of saw blades	/
Saw spindle dia	Ф80mm
Qty of pressure rollers	5(units)
Machine size	3100×2500×2050mm
Packing size	3200×2600×2100mm
Machine weight	(approx)6000kg
Dust exit	Ф250mm×2 Ф200mm×1 Ф150mm×1
Required suction speed	(approx)30-40m/s
Required suction volume	(approx)10000m³/h
Spike link chain conveyor	●
Auxiliary pressure roller at out-feed end	●
Extension table at both ends	○
Laser marker	○
Automatic material handling device	○
Automatic sprinkler system	○
Automatic water cooling device for moisturized wood processing	○
Magnetic grating digital readout	/
PLC + touch screen	●
Pneumatic feeding rollers individually adjusted	●
Chain drive, no slipping	●
