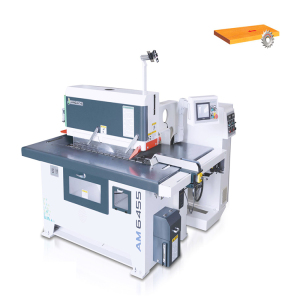

Straight Line Rip Saw

Product Model：

AM6455

Professional solution for the timber longitudinal cutting or straightening process with wood thickness not more than 125mm.High speed, high efficiency and numeric control.

Inquiry

E-mail：jangja@jangja.com

Detailed Description
Technical Specifications


Spike link chain conveyor for an exact cutting parallelism.	Saw spindle can be adjusted freely according to the working thickness.	Automatically measure and calculate the amount of processing to facilitate statistics.

Only need to input the out-feed width, the feeding guide can move and position rapidly for easy and convenient operation.	Saw spindle inverter controlling system.	Laser marker indicates the cutting routine in advance.

Top feeding rollers pneumatic adjustment, ensures a uniform pressure.

Standard


Upper & bottom anti-kickback fingers design to prevent wood chips from rebounding.	Pressure mechanism up/down limit switches to ensure safe operation.	Automatic oil pump provides a forced lubrication to the link chain conveyor and the guideway.

Pressure mechanism motor-driven elevation for a convenient and fast adjustment.

Optional


Model VM, SM & EM: laser marker to indicate the cutting routine in advance.	Extension table.	Feeding guide automatic setting & working width digital readout.

Auxiliary support roller.	Model VM & SM: spike link chain conveyor for exact parallelism.	Saw blade cover can't be opened until saw spindle comes to a complete stop for operator safety.

Item	Machine model
	AM6455
	Technical data
Working thickness	10-125mm
Min. working length	120mm (250mm when edge straightening)
Working width	1-∞
Throat capacity	600mm
Total motor power	18.18kW
Saw spindle motor power	15kW
Feeding motor power	3kW
Elevation motor	0.18kW
Saw spindle rotation speed	(Variable Frequency Drive)3000-4000rpm
Feeding speed	10-40m/min
Saw blade dia	305-455mm
Working table size	2060×1286mm
Qty of pressure rollers	10(units)
Machine size	2354×1630×1550mm
Packing size	2354×1746mm
Machine weight	1860kg
Dust exit	(upper)Φ125mm×1 (down)Φ150mm×1
Required suction speed	(approx)30-40m/s
Required suction volume	1800m³/h
Saw spindle adjustable	●
Auxiliary support rollers in table	○
Laser marker	●
Side safety baffle	○
Working width digital readout	●
Feeding guide automatic setting	●
Extension table	○
T-guideway adjustment indicating	●
Saw spindle inverter control system	●
Saw blade stop safety device	○
